System
ProcessorIntel Celeron J1900
ChipsetIntel Bay trail SOC
MemoryDDR3 4G RAM (Max 8G)
Storage2.5" HDD/ SSD ( Size optional)
GraphicIntel HD chipset
Ethernet2 x 100/1000 LAN ports
Video1 x VGA
Audio1x Mic-in and 1x Line-out
USB Port4 x USB 2.0
Serial Port4*COM(3* RS232,1*RS485)
Parallel ports(LPT)1 x SPP/EPP/ECP port
Keyboard /Mouse2xPS/2
Power switch1 x power switch
Expansive Slot1 x Mini PCIe
Power supplyDC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
ConstructionFront aluminum bezel(6 mm) and steel chassis
LCD display
Display Type12.1" SXGA TFT LCD
Resolution1024 x 768
Max.color16.2M
Luminance500 cd/m2
View Angle160°(H) , 160°(V)
Pixel Pitch0.297 x 0.297 mm
Contrast Ratio700:1
Response Time35 ms
LCD MTBF50,000hrs
Touchscreen
TypeResistive Touchscreen with internal USB interface controller
ResolutionContinuous
Light Transmission80% or more
Surface hardness3H
Operating Force≤100g
Life Expectancy35 Millions
Environmental
Operate temperature-10°C~ 60°C (-14~140°F)
Storage temperature-20°C ~ 70°C (-4 ~ 158°F)
Storage humidity5% to 95% @40°C non-condensing
Anti-Shock1G / peak( 11m sec)
Power supply
Input100~240VAC , 50/60Hz, external ac adapter with lockable connector
OutputDC12V, output 30W
Packing info
Dimensions (WxHxD)322 x 247.5 x 70mm
WeightNet: 5kg , Gross:8 kg
Ordering informations

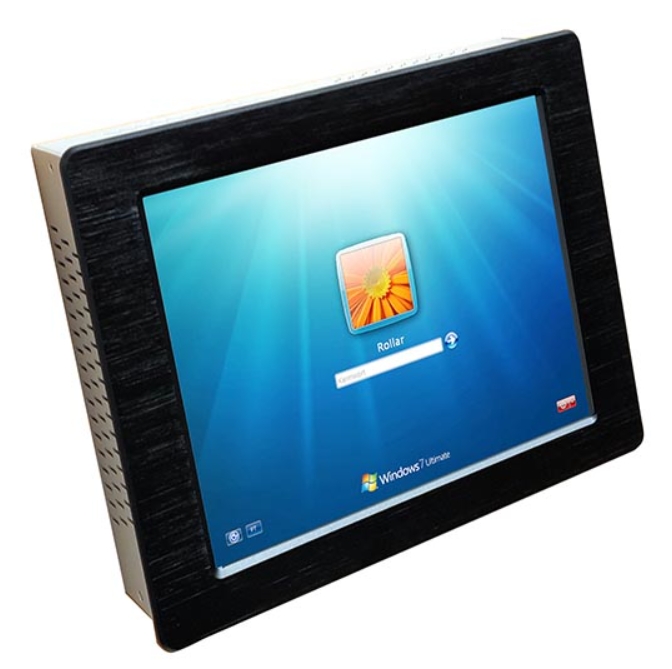

IPC-12A12.1 inches industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 4xCOM(3* RS232,1*RS485), 1x LPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x Audio, MIC, Resistive Touch Screen,Resistive touchscreen, DC 9-36V input
IPC-12ALIPC-12A + Mini-PCIEwireless Lan card with antenna
