Industrial Monitor

System

• ProcessorIntel Celeron J1900

• ChipsetIntel Bay trail SOC

• MemoryDDR3 4G RAM (Max 8G)

• StorageHDD/SSD size optional

• Ethernet2 x 100/1000 LAN ports

• Video1 x VGA, 1x HDMI

• Audio1x Mic-in / Line-out

• USB Port3 x USB 2.0, 1x USB3.0

• Serial Port2 x COM(1x RS232 + 1x RS422/RS485/RS232)

• Power switch1 x power switch

• Expansive Slot1 x Mini PCIe

• Power supplyDC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter

• ConstructionFront aluminum bezel(5 mm) and steel chassis

LCD display

• Display Type12.1" XGA TFT LCD(LED backlight)

• Resolution1024 x 768

• Max.color16.2M

• Luminance400 cd/m2

• View Angle150°(H) , 135°(V)

• Pixel Pitch0.297 x 0.297 mm

• Contrast Ratio300:1

• Response Time8 ms

• LCD MTBF50, 000hrs

Available Options

• Touch screenResistive type touch screen

• Wireless LANMeet IEEE802.11b/g standard(WiFI)

• DC Power InputWide Range 9~36v DC input

Environmental

• Operate temperature-10°C~ 60°C (-14~140°F)

• Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity5% to 95% @40°C non-condensing

• Anti-Vibration17HZ-500 HZ 1G PTP

• Anti-Shock1G / peak( 11m sec)

Power supply

• Input100~240VAC , 50/60Hz, external ac adapter with lockable connector

• OutputDC12V, output 32W

Packing info

• Dimensions (WxHxD)315 x 250 x 49mm

• WeightNet: 4.6kg , Gross:6.8 kg

Ordering informations

• IPC-12DF12.1 inches industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 128G SSD(Size optional), 2*COM, 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen

• IPC-12DFLIPC-12DF + Mini-PCIE wireless Lan card with antenna

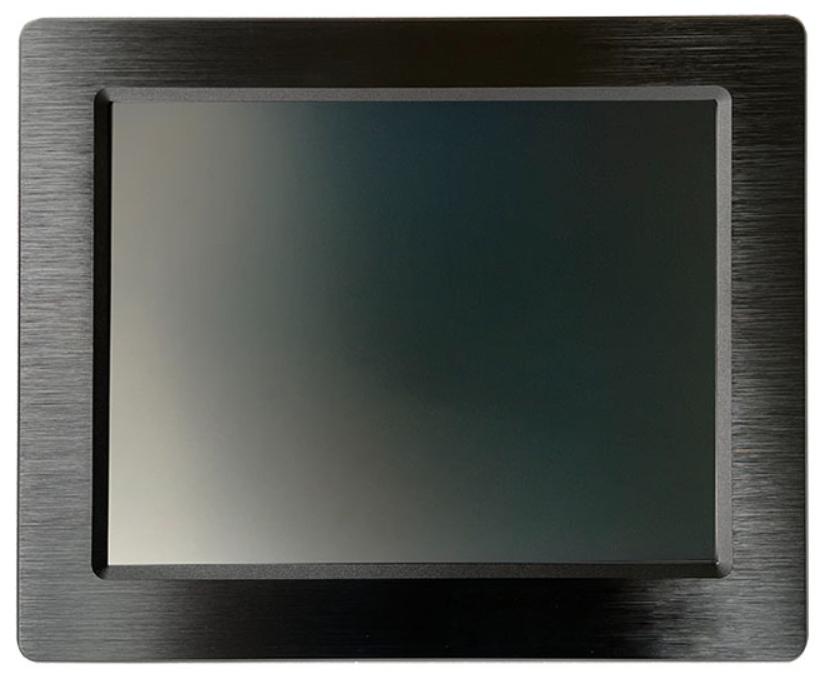

IPC-12DF is a 12.1" industrial panel PC with touch screen or strengthen glass, 128G SSD, 4G Ram, SSD and ram size are optional. I/O configuration support to customize. Windows 10 and Linux OS support, for industrial equipment, factory automations machines.

Features

• 12.1" XGA TFT LCD Panel support 1024x768 pixels

• 5mm Aluminum front bezel with resistive touch screen

• Intel Celeron J1900 Quad Core 2.0G CPU

• Supports Win7/Win8/Win10, Linux

• 2 x COM(1x RS232 + 1x RS422/RS485/RS232), 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC

• 1* Mini PCIe slot for wifi optional

• Standard DC 12V input (optional Wide range DC 9-36V input)

• Panel ( Flush ) mount with clips

• Standard VESA 100mm hole support stand , wall mount and swing arm
