Industrial Monitor

Display

Display Type23.6" LED FULL HD TFT LCD

Resolution1920x1080

Max.color16.7M

Luminance400 cd/m2

View Angle178°(H) , 178°(V)

Pixel Pitch0.2715 x 0.2715 mm

Contrast Ratio1000:1

Response Time15 ms

LCD MTBF40,000hrs

Input Signals

RGB SignalD-SUB 15P Connector (female)

DC input2-Pin Terminal Block

HDMI SignalHDMI connector (female)

Touch screen RS232 (option)D-SUB 9p connector (female)

Touch screen USB (option)USB-A type connector (female)

Available Options

Touch screenResistive type touch screen with USB controller

DC Power InputWide Range 9~36v DC input

Power supply

Standard100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter

DC-DC PowerDC 9 ~ 36v input power module(optional)

Environmental

ConstructionHeavy duty steel and aluminum front panel

Operate temperature0 °C to 50 °C

Storage temperature-20 °C to 60 °C

Storage humidity10% to 90% non-condensing

Anti-Vibration17HZ-500 HZ 1G PTP

Anti-Shock1G / peak( 11m sec)

Packing info

Dimensions (WxHxD)605 x 380 x 47 mm

WeightNet: 8.0kg , Gross:10.5 kg

Ordering informations

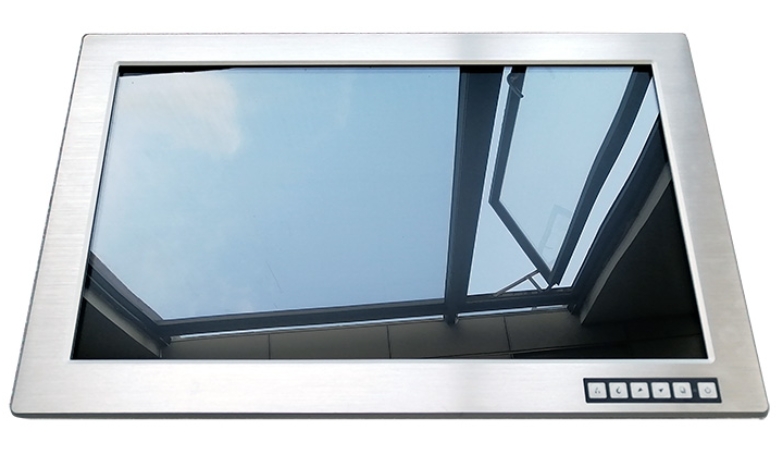

IDM-236W23.6" Industrial LCD Panel Monitor with VGA + HDMI + Audio input, DC 9~36V Input

23.6 inch wide screen industrial monitor 16:9 FULL HD TFT LED Panel support 1920x1080 pixels, 400 cd/m2 brightness, with HDMI, touch screen and strengthen glass optional.

Features

• 23.6 FULL HD TFT LED Panel support 1920x1080 pixels, 400 cd/m2 brightness

• 6mm Aluminum bezel panel with touch screen/strengthen glass

• Rugged construction and modularized design

• VGA + DVI + Audio Input signal(AV Optional)

• 2 x stereo speakers for industrial automation system voice output

• OSD control keys to optimize the display

• AC 100-240V wide range external ac adapter

• NEMA4 / IP 65 compliant front panel

• Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
