Industrial Monitor

Display

Display Type15.6" Wide Full HD LCD

Resolution1920 x 1080

Max.color16.7M

Luminance400 cd/m2

View Angle160°(H) , 140°(V)

Contrast Ratio700:1

Response Time8 ms

Backlight Life50,000hrs

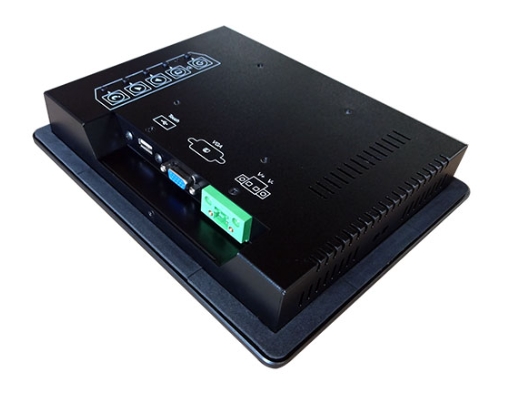

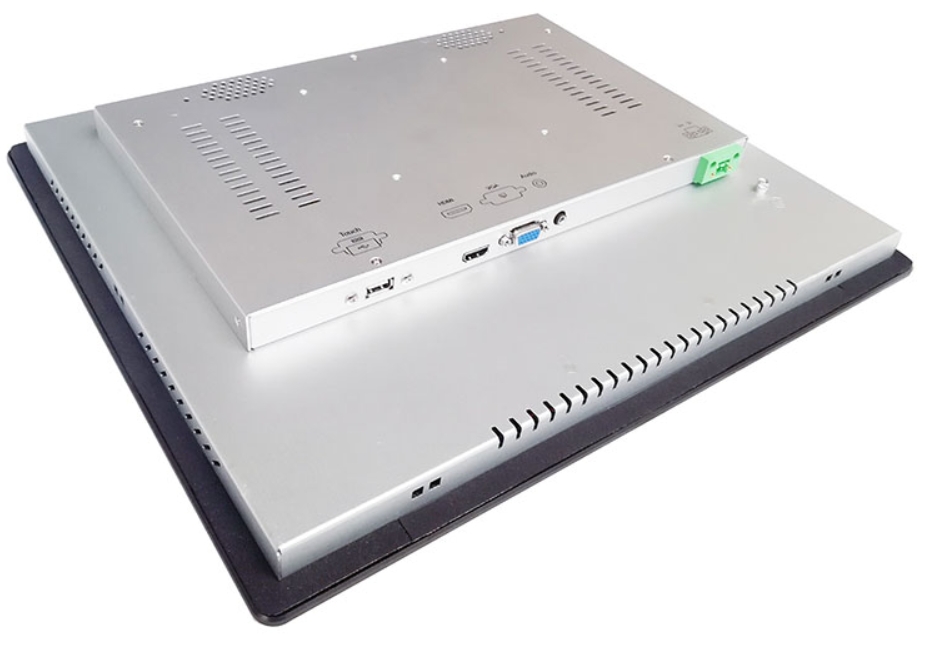

Input Signals

RGB SignalD-SUB 15P Connector (female)

DC input2-Pin Terminal Block

HDMI SignalHDMI connector (female)

Touch screen RS232 (option)D-SUB 9p connector (female)

Touch screen USB (option)USB-A type connector (female)

Available Options

Touch screenResistive type touch screen with USB controller

DC Power InputWide Range 9~36v DC input

Power supply

Standard100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter

DC-DC PowerDC 9 ~ 36v input power module(optional)

Environmental

ConstructionHeavy duty steel and aluminum front panel

Operate temperature-10°C~ 60°C (-14~140°F)

Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

Storage humidity5% to 95% non-condensing

Anti-Vibration17HZ-500 HZ 1G PTP

Anti-Shock1G / peak( 11m sec)

Packing info

Dimensions (WxHxD)402x 252 x 45 mm

WeightNet: 7.5kg , Gross: 9 kg

Ordering informations

IDM-156W15.6" wide screen Full HD LCD industrial panel monitor with VGA, HDMI input

IDM-156WT15.6" wide screen Full HD LCD Industrial Panel Monitor with VGA, HDMI, resistiveTouch screen

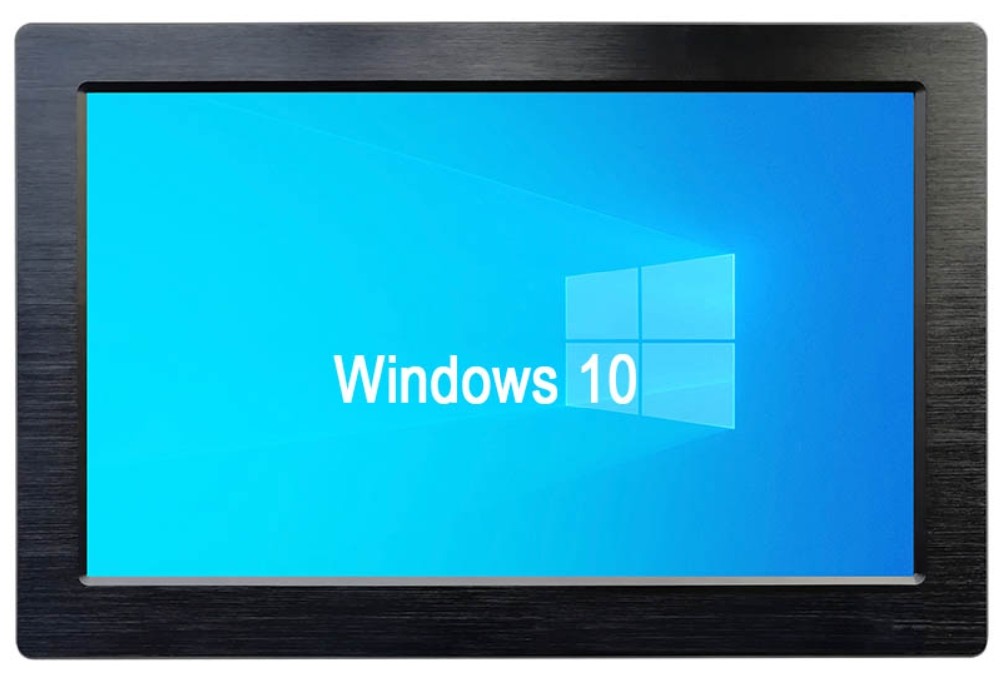

The IDM-156W is an industrial-grade, 1920 * 1080 resolution LCD panel, widescreen monitor with a resistive touchscreen or /strengthen glass. The industrial monitor is equipped IP65-rated 6mm high-rugged aluminium front bezel, It is designed for intuitive operation in harsh industrial environments. Moreover, It supports a range of mount options to ensure easy, single-person installation.

Features

15.6" wide Full HD LCD Panel support 1920 x 1080 pixels, 400 cd/m2 brightness

6mm Aluminum bezel panel with touch screen/strengthen glass

Flat, sealed and modularized design

Direct VGA, HDMI input interfaces

OSD control keys to optimize the display (Optional)

Power adapter with AC 100 V ~ 240 V input and DC +12 V output

Optional 9 ~ 36 VDC power input

NEMA4 / IP 65 compliant front panel

Supports panel, wall, desktop, rack or VESA arm mounting
