Industrial Monitor

Display

Display Type   15" XGA TFT LCD

Resolution   1024 x 768

Max.color   16.2M

Luminance   250 cd/m2

View Angle   178°(H) , 160°(V)

Pixel Pitch   0.297 x 0.297 mm

Contrast Ratio   700:1

Response Time   5 ms

LCD MTBF   50,000hrs

Input Signals

RGB Signal   D-SUB 15P Connector (female)

DC input   DC Jack (2.1mm)

Video Input (option)   RCA Connector

S-Video signal (option)   S-Video (SVHS)plug

DVI-D Signal   DVI-D input 24pin connector (female)

Touch screen RS232 (option)   D-SUB 9p connector (female)

Touch screen USB (option)   USB-A type connector (female)

Available Options

Touch screen   Resistive Type with USB and RS232 controller

DC Power Input   Wide Range 8~30v DC input

AV input   Composite Video/Audio, S-Video Input

Power supply

Standard   100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter

DC-DC Power   DC 8 ~ 30v input power module(optional)

Environmental

Construction   Heavy duty steel and aluminum front panel

Operate temperature   -10°C~ 60°C (-14~140°F)

Storage temperature   -20°C ~ 70°C (-4 ~ 158°F)

Storage humidity   5% to 95% non-condensing

Anti-Vibration   17HZ-500 HZ 1G PTP

Anti-Shock   1G / peak( 11m sec)

Packing info

Dimensions (WxHxD)   375 x 300 x 42 mm

Weight   Net: 6.0kg , Gross: 8.0 kg

Ordering informations

IDM-15   15" Industrial Panel Mount Monitor with VGA + HDMI/ DVI + Audio Input

IDM-15TC   15" Industrial LCD Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and RS232 controller

IDM-15TU   15" LCD Industrial Panel Mount Monitor with VGA + DVI/ HDMI + Audio Input, with touch screen and USB controller

IDM-15A   15" Industrial Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input

IDM-15ATC   15" Industrial Panel Mount Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller

IDM-15ATU   15" LCD Industrial Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller

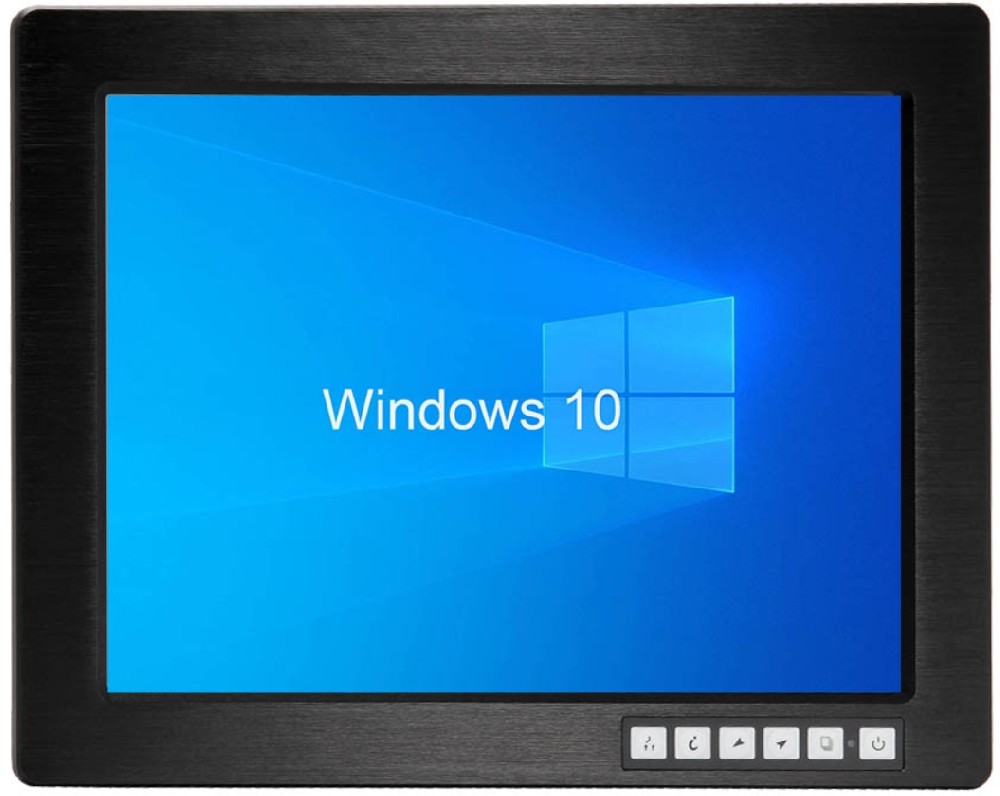

IDM-15 is an Industrial grade 15" 4:3 XGA monitor with HDMI or DVI, VGA ,touch screen panel.   It is an reliable and ideal HMI for industrial applications in harsh environment. It offers flexible options for high brightness, power input, video input, coating and mounting kit. Widely used into  HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment (CNC, machine tool etc.).

Features

• 15" XGA TFT LCD Panel support 1024 x 768 pixels,250 cd/m2 brightness

• 6mm Aluminum bezel panel with touch screen/strengthen glass

• Rugged construction and modularized design

• VGA + HDMI or DVI + Audio Input signal(AV Optional)

• 2 x stereo speakers for industrial automation system voice output

• OSD control keys to optimize the display

• AC 100-240V wide range external ac adapter

• NEMA4 / IP 65 compliant front panel

• Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount

• Application for HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)
