Industrial Monitor

Display

• Display Type8" XGA TFT LCD

• Resolution1024x768

• Max.color262K

• Luminance250 cd/m2

• View Angle110°(H) , 120°(V)

• Pixel Pitch0.15825×0.15825mm

• Contrast Ratio700 : 1

• Response Time25ms

• LCD MTBF50,000hrs

Input Signals

• RGB SignalD-SUB 15P Connector (female)

• DC inputDC Jack (2.1mm)

• Touch screen USB (option)USB-A type connector (female)

Available Options

• Touch screenResistive Type with USB and RS232 controller

• DC Power InputWide Range 8~30v DC input

• AV inputNo

Power supply

• Standard100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter

• DC-DC PowerDC 8 ~ 30v input power module(optional)

Environmental

• ConstructionHeavy duty steel and aluminum front panel

• Operate temperature-10°C~ 60°C (-14~140°F)

• Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity5% to 95% non-condensing

• Anti-Vibration17HZ-500 HZ 1G PTP

• Anti-Shock1G / peak( 11m sec)

Packing info

• Dimensions (WxHxD)287.5 x 231 x 50 mm

• WeightNet: 3.kg , Gross:4.5 kg

Ordering Information:

• IDM-088" Industrial LCD Panel Monitor with VGA input

• IDM-08T8" Industrial LCD Panel Monitor with VGA input, with touch screen and USB controller

• Tags: 8 inch touch screen monitor, 8 inch lcd monitor, 8 inch touch panel monitor

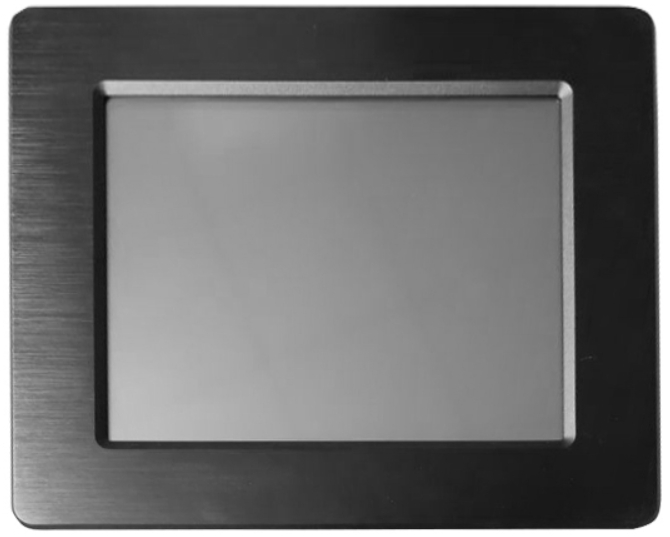

IDM-08 is an 8 inch LCD 1024x768 Industrial panel monitor with touch screen or strengthen glass. 6mm aluminum panel, IP65 level, ideally use into HMI, Kisok, Automation machine, M2M, Smart factory, heavy Manufacturing Equipment.IDM-08 - 8 inch touch screen monitor. 8 inches LCD 1024x768 Industrial panel monitor with touchscreen.

Features

• 8" XGA TFT LCD Panel support 1024x768 pixels,250 cd/m2 brightness

• 6mm Aluminum front bezel with resistive touch screen(USB connector) /strengthen glass

• Rugged construction and slim modularized design

• Input signal VGA and DVI

• OSD control keys to optimize the display

• AC 100-240V wide range external ac adapter

• Panel ( Flush ) mount with bracket

• NEMA4 / IP 65 compliant front panel

• With standard VESA holes ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting

• Application for Automation control, HMI, M2M, heavy Manufacturing Equipment, CNC, machine tool etc.
