Industrial Monitor

Display

Display Type10.4" XGA TFT LCD(LED backlight)

Resolution800 x 600/ 1024 x 768

Max.color16.2M

Luminance400 cd/m2

View Angle160°(H) , 140°(V)

Pixel Pitch0.264 x 0.264 mm

Contrast Ratio500:1

Response Time40 ms

LCD MTBF50,000hrs

Input Signals

RGB SignalD-SUB 15P Connector (female)

DC inputDC Jack (2.1mm)

Video Input (option)No

S-Video signal (option)No

DVI-D SignalDVI-D input 24pin connector (female)

Touch screen RS232 (option)D-SUB 9p connector (female)

Touch screen USB (option)USB-A type connector (female)

Available Options

Touch screenResistive Type with USB and RS232 controller

DC Power InputWide Range 8~30v DC input

AV inputNo

Power supply

Standard100~240VAC,50/60Hz, DC12V@5A / 60W ,external ac adapter

DC-DC PowerDC 8 ~ 30v input power module(optional)

Environmental

ConstructionHeavy duty steel and aluminum front panel

Operate temperature-10°C~ 60°C (-14~140°F)

Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

Storage humidity5% to 95% non-condensing

Anti-Vibration17HZ-500 HZ 1G PTP

Anti-Shock1G / peak( 11m sec)

Packing info

Dimensions (WxHxD)300 x 230 x 38 mm

WeightNet: 3.5kg , Gross:5.0 kg

Ordering Information:

IDM-1010.4" LCD Industrial Panel Mount Monitor with VGA + HDMI or DVI + Audio Input

IDM-10TC10.4" LCD Industrial Panel Monitor with VGA + HDMI or DVI + Audio Input, with touch screen and RS232 controller

IDM-10TU10.4" Industrial Monitor with VGA + HDMI or DVI + Audio Input, with touch screen and USB controller

Touch screen monitor with hdmi, touch panel monitor, 10.4 inch touch panel monitor

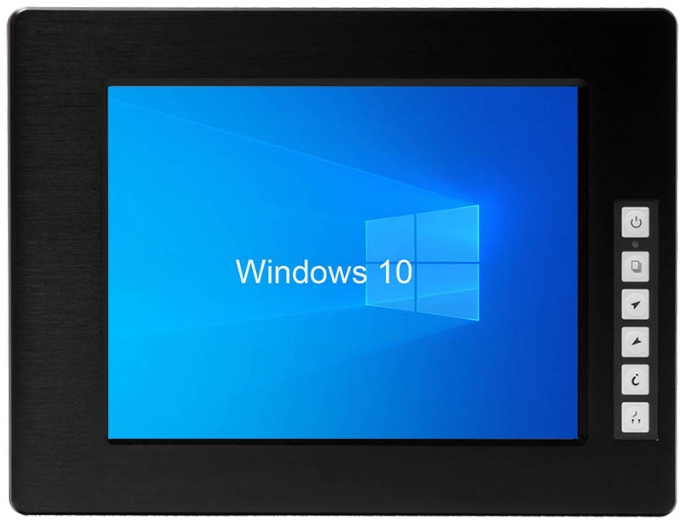

IDM-10 is an industrial panel monitor, 800x600/ 1024x768 LCD panel, touch screen or strengthen glass. 6mm aluminum panel, IP65 level.  HDMI/DVI + VGA ideally use into HMI, Kisok, Automation machine, M2M, Smart factory, Heavy Manufacturing Equipment, Etc. IDM-10 - Touch screen monitor with hdmi. 10.4 inch LCD 1024x768 panel industrial touch screen monitor.

Features

10.4" XGA TFT LCD Panel support 800 x 600/ 1024 x 768 pixels,400 cd/m2 brightness

6mm Aluminum bezel panel with touch screen/strengthen glass

Rugged construction and modularized design

VGA + HDMI or DVI + Audio Input signal

2 x stereo speakers is optional for industrial automation system voice output

OSD control keys to optimize the display

AC 100-240V wide range external ac adapter

NEMA4 / IP 65 compliant front panel

Panel ( Flush ) mount with bracket or standard VESA hole (100x100 mm) supports desktop stand / wall mount/ swing arm mount

Application for HMI, Automation system,, M2M, Control device, Heavy Manufacturing Equipment(CNC, machine tool etc.)
