Industrial Monitor

Display

• Display Type12.1" SXGA TFT LCD

• Resolution1024 x 768/ 800 x 600

• Max.color16.2M

• Luminance450 cd/m2

• View Angle140°(H) , 110°(V)

• Pixel Pitch0.3075 x 0.3075 mm

• Contrast Ratio500:1

• Response Time35 ms

• LCD MTBF50,000hrs

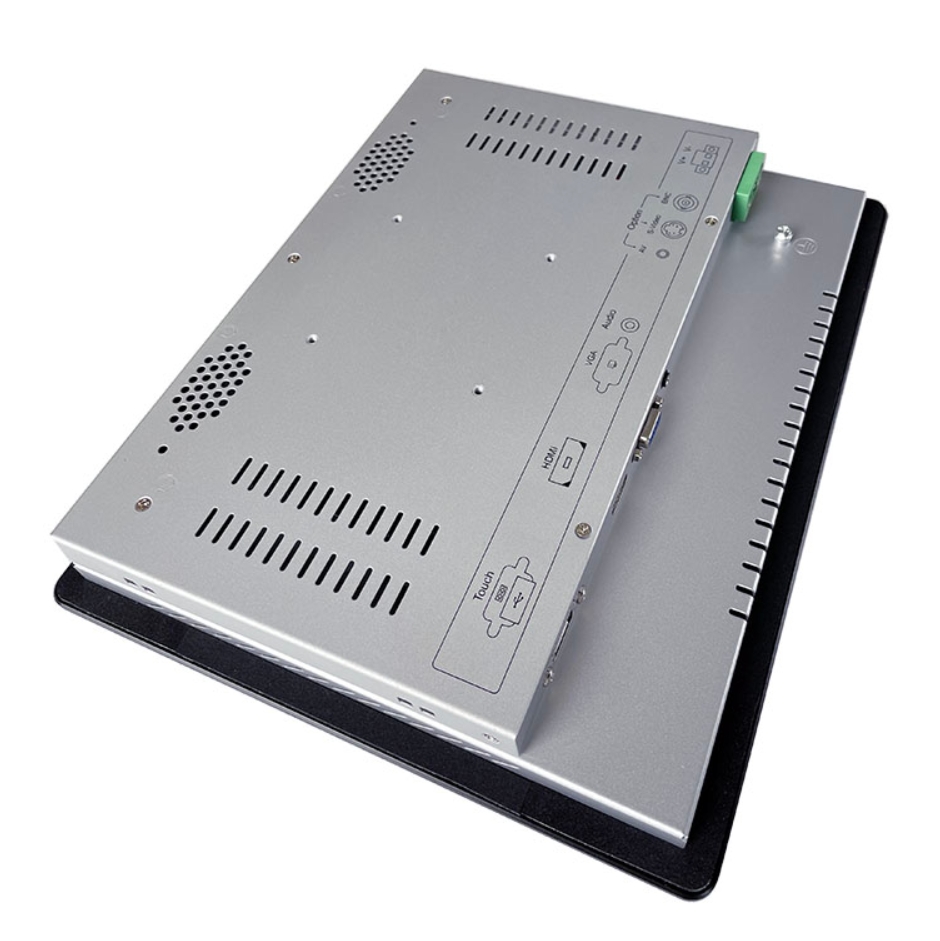

Input Signals

• RGB SignalD-SUB 15P Connector (female)

• DC inputDC Jack (2.1mm)

• Video Input (option)RCA Connector

• S-Video signal (option)S-Video (SVHS)plug

• DVI-D SignalDVI-D input 24pin connector (female)

• Touch screen RS232 (option)D-SUB 9p connector (female)

• Touch screen USB (option)USB-A type connector (female)

Available Options

• Touch screenResistive Type with USB and RS232 controller

• DC Power InputWide Range 8~30v DC input

• AV inputComposite Video/Audio, S-Video Input

Power supply

• Standard100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter

• DC-DC PowerDC 8 ~ 30v input power module(optional)

Environmental

• ConstructionHeavy duty steel and aluminum front panel

• Operate temperature-10°C~ 60°C (-14~140°F)

• Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity5% to 95% non-condensing

• Anti-Vibration17HZ-500 HZ 1G PTP

• Anti-Shock1G / peak( 11m sec)

Packing info

• Dimensions (WxHxD)320 x 258.5 x 42 mm

• WeightNet: 4.5kg , Gross:6.0 kg

Ordering Information:

• IDM-1212.1" Industrial LCD Panel display with VGA + DVI/ HDMI + Audio Input

• IDM-12TC12.1" LCD Industrial Panel display with VGA + HDMI/ DVI + Audio Input, with touch screen and RS232 controller

• IDM-12TU12.1" Industrial Panel Mount display with VGA + DVI/ HDMI + Audio Input, with touch screen and USB controller

• IDM-12A12.1" Industrial LCD display with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input

• IDM-12ATC12.1" Industrial Panel Mount display with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller

• IDM-12ATU12.1" Industrial display with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller

• Tags: 12.1 inch industrial lcd display, touch screen lcd industrial panel display.

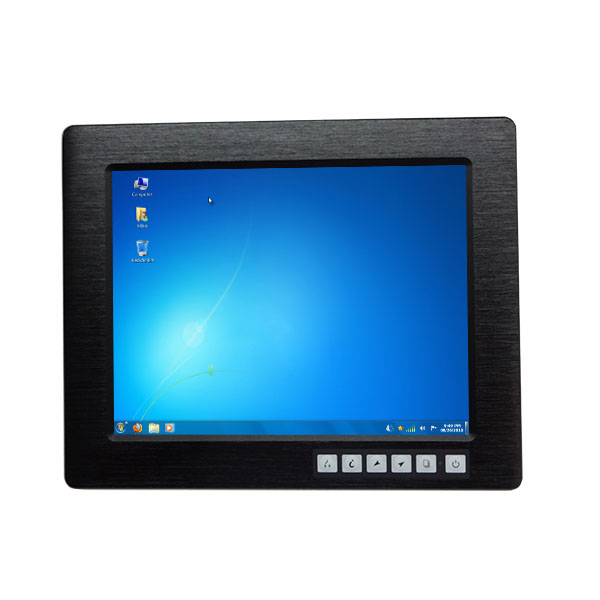

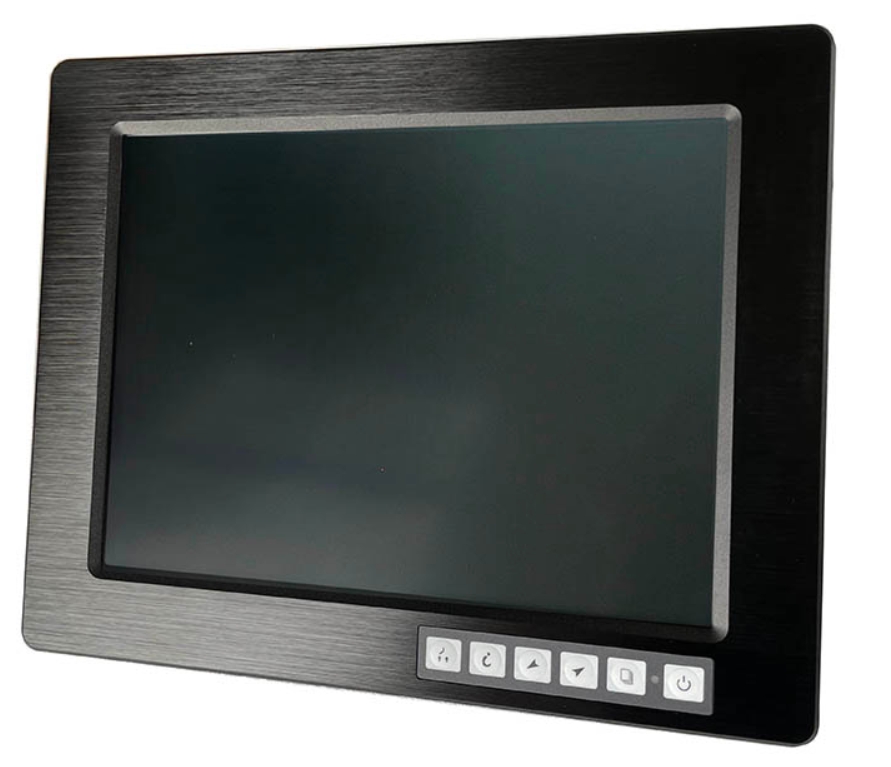

IDM-12 is an Industrial panel monitor with a 12.1 inch LCD 1024x768/800x600 panel, HDMI/DVI and VGA, touch screen or strengthen glass. 6mm aluminum panel, IP65 level, ideally use into HMI, Kisok, Automation machine, M2M, Smart factory, heavy Manufacturing Equipment, CNC, machine tool,HMI, Kiosk etc. IDM-12 - 12.1 inch industrial lcd display. 12.1 inches touch screen lcd industrial panel monitor.

Features

• 12.1" XGA TFT LCD Panel support 1024x768/800x600 pixels

• 6mm Aluminum bezel panel with touch screen/strengthen glass

• Rugged construction and modularized design

• HDMI/DVI + VGA + Audio Input signal(AV Optional)

• 2 x stereo speakers for industrial automation system voice output

• OSD control keys to optimize the display

• AC 100-240V wide range external ac adapter

• NEMA4 / IP 65 compliant front panel

• Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount

• Application for Automation control, M2M, Heavy Manufacturing Equipment,CNC, machine tool,HMI, Kiosk etc.
