Industrial Monitor

Display

• Display Type17" SXGA TFT LCD

• Resolution1280x1024

• Max.color16.7M

• Luminance300 cd/m2

• View Angle178°(H) , 178°(V)

• Pixel Pitch0.264 x 0.264mm

• Contrast Ratio1000:1

• Response Time5 ms

• LCD MTBF50,000hrs

Input Signals

• RGB SignalD-SUB 15P Connector (female)

• DC inputDC Jack (2.1mm)

• Video Input (option)RCA Connector

• S-Video signal (option)S-Video (SVHS)plug

• DVI-D SignalDVI-D input 24pin connector (female)

• Touch screen RS232 (option)D-SUB 9p connector (female)

• Touch screen USB (option)USB-A type connector (female)

Available Options

• Touch screenResistive Type with USB and RS232 controller

• DC Power InputWide Range 8~30v DC input

• AV inputComposite Video/Audio, S-Video Input

Power supply

• Standard100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter

• DC-DC PowerDC 8 ~ 30v input power module(optional)

Environmental

• ConstructionHeavy duty steel and aluminum front panel

• Operate temperature-10°C~ 60°C (-14~140°F)

• Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity5% to 95% non-condensing

• Anti-Vibration17HZ-500 HZ 1G PTP

• Anti-Shock1G / peak( 11m sec)

Packing info

• Dimensions (WxHxD)408 x 345 x 47 mm

• WeightNet: 8.0kg , Gross:10.5 kg

Ordering informations

• IDM-1717" Industrial Panel Monitor with VGA + HDMI/ DVI + Audio Input

• IDM-17TC17" Industrial Panel Mount Monitor with VGA + DVI or HDMI + Audio Input, with touch screen and RS232 controller

• IDM-17TU17" Industrial Panel Mount Monitor with VGA + HDMI or DVI + Audio Input, with touch screen and USB controller

• IDM-17A17" IndustrialMonitor with VGA + HDMI or DVI + Audio + S-Video + Video Input or BNC input

• IDM-17ATC17" Industrial Panel Mount Monitor with VGA + HDMI or DVI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller

• IDM-17ATU17" Industrial Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller

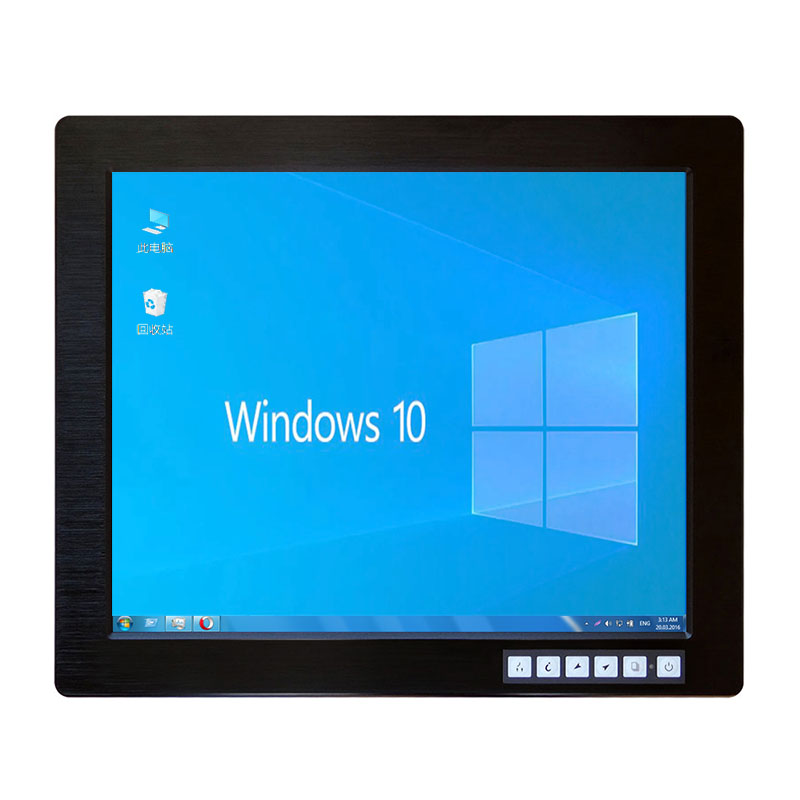

IDM-17 is an industrial panel monitor equipped a LCD panel supports 1280 x 1024 resolutions. It features a rugged build with its IP65 rating for water and dust resistance, plus a compact bezel design - making them suitable for wet and dusty applications.6mm aluminum panel, IP65 level. touch screen or strengthen glass. It is ideally used into HMI, Kisok, Automation machine, M2M, Smart factory, heavy Manufacturing Equipment.

Features

• 17" SXGA TFT LCD Panel support 1280 x 1024 pixels,300 cd/m2 brightness

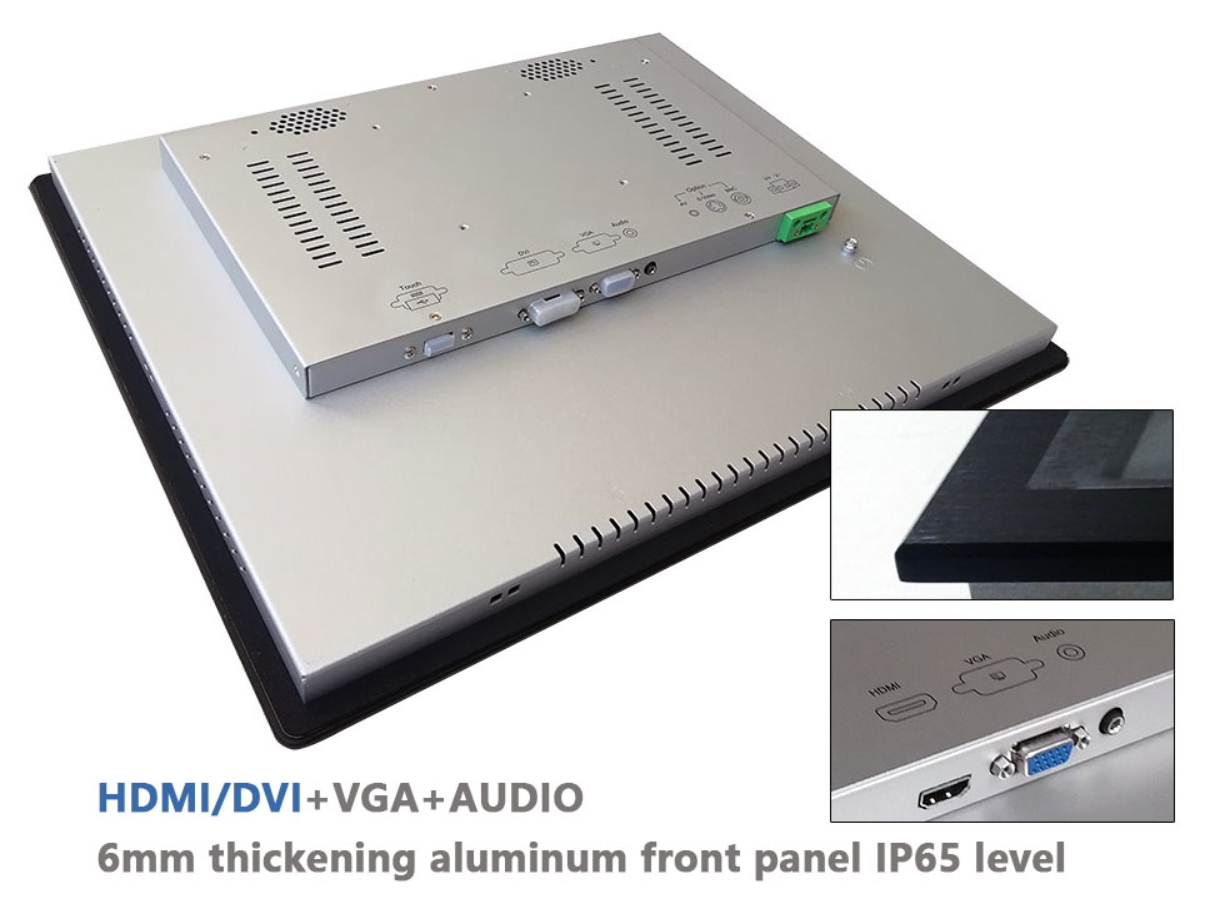

• 6mm Aluminum bezel panel with touch screen/strengthen glass

• Rugged construction and modularized design

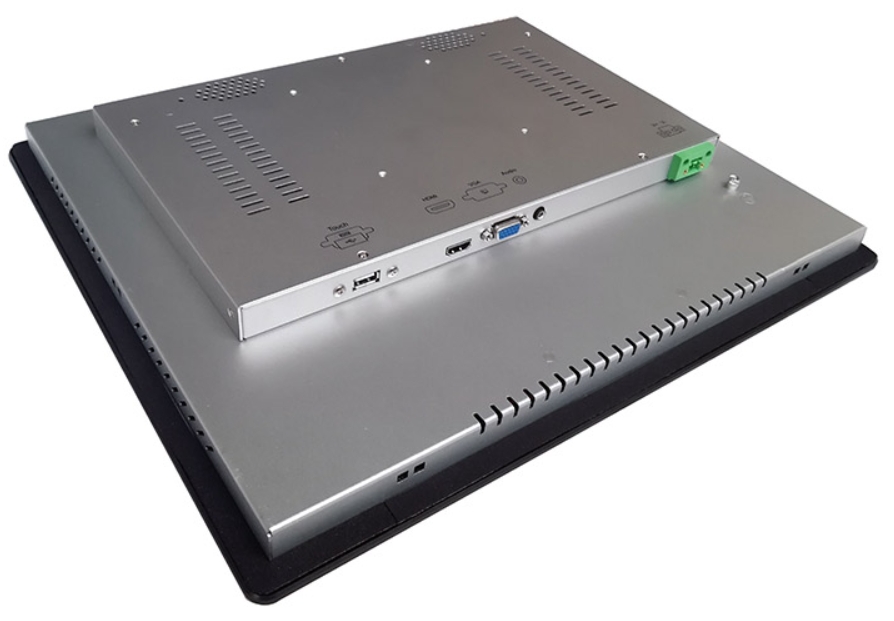

• VGA + DVI or HDMI + Audio Input signal(AV and Other Optional)

• 2 x stereo speakers for industrial automation system voice output

• OSD control keys to optimize the display

• AC 100-240V wide range external ac adapter

• NEMA4 / IP 65 compliant front panel

• Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount

• Application for HMI, Kiosk, Automation, M2M, heavy Manufacturing Equipment(CNC, machine tool etc.)
