Display
Display Type 19" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 160°(H) , 160°(V)
Pixel Pitch 0.294 x 0.294mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs
Input Signals
RGB Signal D-SUB 15P Connector (female)
DC input DC Jack (2.1mm)
Video Input (option) RCA Connector
S-Video signal (option) S-Video (SVHS)plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)
Available Options
Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input
AV input Composite Video/Audio, S-Video Input
Power supply
Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental

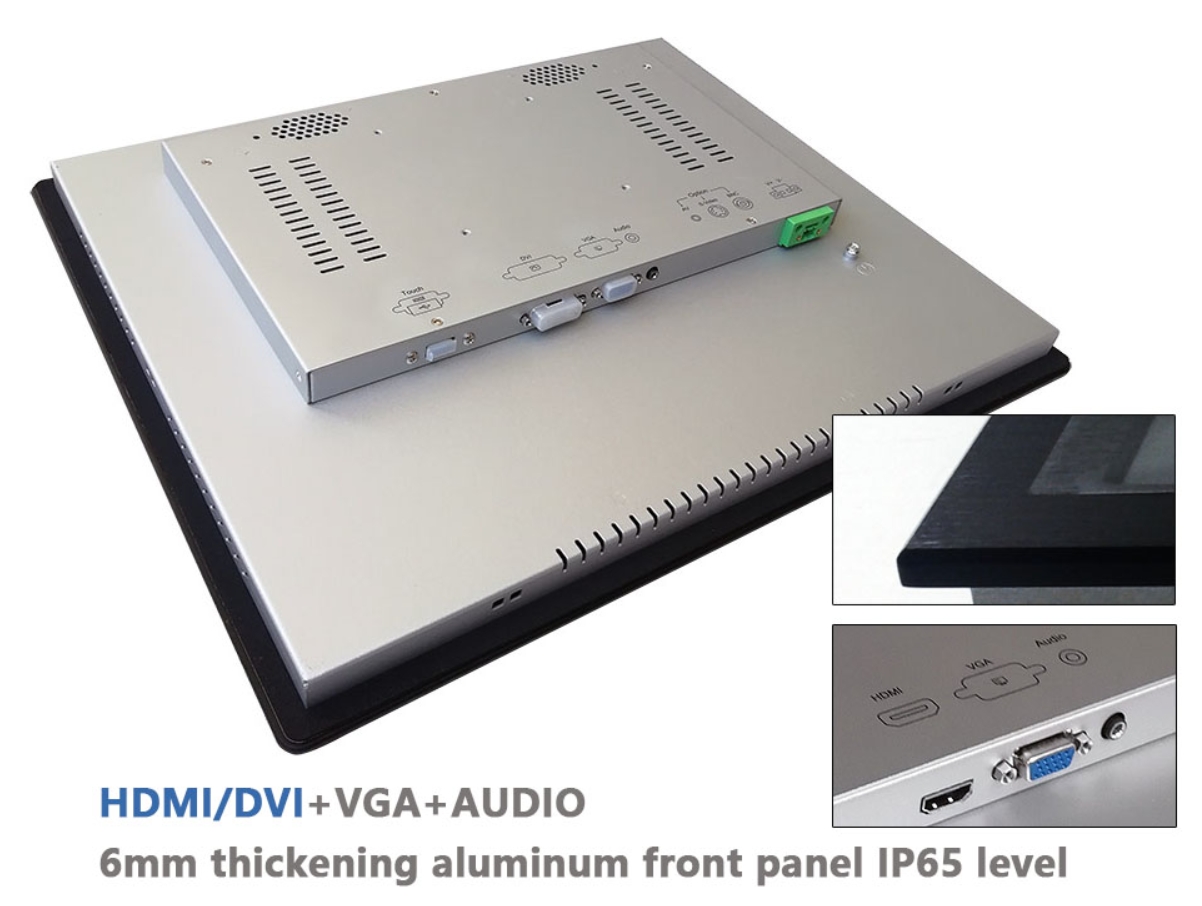

Construction Heavy duty steel and aluminum front panel
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Packing info
Dimensions (WxHxD) 450 x 375 x 47 mm
Weight Net: 9.0kg , Gross:11.5 kg
Ordering informations
IDM-19 19" LCD Industrial Panel Monitor with VGA + HDMI/ DVI + Audio Input
IDM-19TC 19" LCD Industrial Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and RS232 controller
IDM-19TU 19" LCD Industrial Panel Mount Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and USB controller
IDM-19A 19" Panel Mount Industrial LCD Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input
IDM-19ATC 19" Panel Mount Industrial LCD Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller
IDM-19ATU 19" Flat Panel Industrial LCD Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller
