Industrial Monitor

System

• ProcessorIntel Celeron J1900

• ChipsetIntel Bay trail SOC

• MemoryDDR3 4G RAM (Max 8G)

• Storage2.5" HDD/ SSD ( Size optional)

• GraphicIntel HD chipset

• Ethernet2 x 100/1000 LAN ports

• Video1 x VGA

• Audio1x Mic-in and 1x Line-out

• USB Port4 x USB 2.0

• Serial Port6*COM(5* RS232,1*RS422/RS485)

• Parallel ports(LPT)1 x SPP/EPP/ECP port

• Keyboard /Mouse2xPS/2

• Power switch1 x power switch

• Expansive Slot1 x Mini PCIe

• Power supplyDC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter

• ConstructionFront aluminum bezel(6 mm) and steel chassis

LCD display

• Display Type15" XGA TFT LCD(LED backlight)

• Resolution1024x768

• Max.color16.2M

• Luminance450 cd/m2

• View Angle160°(H) , 140°(V)

• Pixel Pitch0.297 x 0.297 mm

• Contrast Ratio700:1

• Response Time12 ms

• LCD MTBF50, 000hrs

Touchscreen

• TypeResistive Touchscreen with internal USB interface controller

• ResolutionContinuous

• Light Transmission80% or more

• Surface hardness3H

• Operating Force≤100g

• Life Expectancy35 Millions

Environmental

• Operate temperature-10°C~ 60°C (-14~140°F)

• Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

• Storage humidity5% to 95% @40°C non-condensing

• Anti-Vibration17HZ-500 HZ 1G PTP

• Anti-Shock1G / peak( 11m sec)

Power supply

• Input100~240VAC , 50/60Hz, external ac adapter with lockable connector

• OutputDC12V, output 32W

Packing info

• Dimensions (WxHxD)406 x 312 x 75mm

• WeightNet: 6.8kg , Gross:8.6kg

Ordering informations

• IPC-15A15 inches industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 6*COM(5* RS232,1*RS422/RS485), 1x LPT, 2x ps/2, 1xVGA, 4xUSB,, 2xLAN, 1x Audio, MIC, Resistive Touch Screen,12v power adapter

• IPC-15ALIPC-15A + Mini-PCIE wireless Lan card with antenna

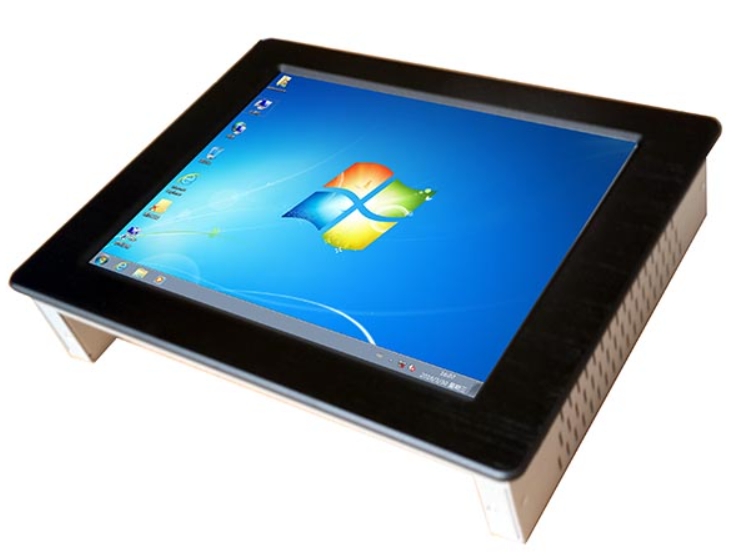

IPC-15A is an industrial 15" lcd panel an all-in-one PC, 6mm thickness rugged aluminum panel meets NAME4 IP65 level, J1900 cpu, 250G SSD, and 4/8G Ram, touchscreen/strengthen glass is optional, Parallel ports(1x LPT), 2 Gbe LAN, 6xCOM(5*RS232,1*RS422/RS485), 12V/24V/9~36V power input.

Features

• 15" XGA TFT LCD Panel support 1024x768 pixels

• 6mm Aluminum front bezel with resistive touch screen

• Intel Celeron J1900 Quad Core 2.0G CPU

• Supports Win7/Win8/Win10, Linux

• 6xCOM(5*RS232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC

• 1* Mini PCIe slot for wifi optional

• Standard DC 12V input (optional Wide range DC 9-36V input)

• Panel ( Flush ) mount with clips

• Standard VESA 75/100mm support stand , wall mount and swing arm
