Panel PC

Main System

CPUIntel® Core 6/7/8/9th i7/i5/i3 , Celeron® LGA1151 type CPU

ChipsetIntel H310C chipset

System Memory2x DDR4, MAX support 32GB

LAN2x Realtek® RL8111x (Gigabit ) 10/100/1000Ethernet

HDD (hard disk )1x 2.5" SATA SSD/HDD; 1x M.2 Slot

AudioRealtek® ALC662, 5.1 channel surround Audio

I/O Connector5 x RS-232
1 x RS422/485
1x HDMI port
1x PS/2 (Keboard/mouse)
1x VGA DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
2x USB2.0, 2x USB3.0
1x 3Pin DC power input terminal block

Expansion1 x Mini PCIe slot

General

ConstructionAluminum panel with IP65 compliant

ColorBlack or OEM(>=100 units)

OS SupportWindows 10/8/7, Linux

MountingPanel mount or Standard VESA 100mm

Power supplyDC 12V, with External AC adapter,Output Rating 120W

DC optionalOptional DC 9-36V input

LCD display

Display type15" XGA TFT LCD LED Backlight

Resolution1024 x 768 pixels

Luminance350 cd/m2

Viewing angle178°(H), 178°(V)

Pixel Pitch0.297 x 0.297 mm

Contrast Ratio1000:1

LCD MTBF50,000hrs

Touchscreen

TypeAnalog Resistive

Controller InterfaceInternal USB interface controller

ResolutionContinuous

Light Transmission81% or more

Operating Force≤100g

Life Expectancy35 Million

Environmental

Operate temperature-20°C~ 60°C (-4~140°F)

Storage temperature-30°C ~ 80°C (-22 ~ 176°F)

Storage humidity5% to 95% @40°C non-condensing

Vibration17 to 500HZ 1G PTP

Operating Shock1G /peak ( 11m sec)

Ingress ProtectionFront panel: IP65

Packing info

Dimensions(WxHxD)406 x 312 x 70mm

NET weight6.5 KG

Ordering informations

IPC-1501AIIndustrial 15" panel PC, with i7-6700 (4G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter

IPC-1502AIIndustrial 15" panel PC, with i5-6500 (3.2G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter

IPC-1503AIIndustrial 15" panel PC, with i3-6100 (3.7G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter

CPU OptionsIntel 6/7/8/9th Core i7/i5/i3, Celeron LGA1151 type CPU

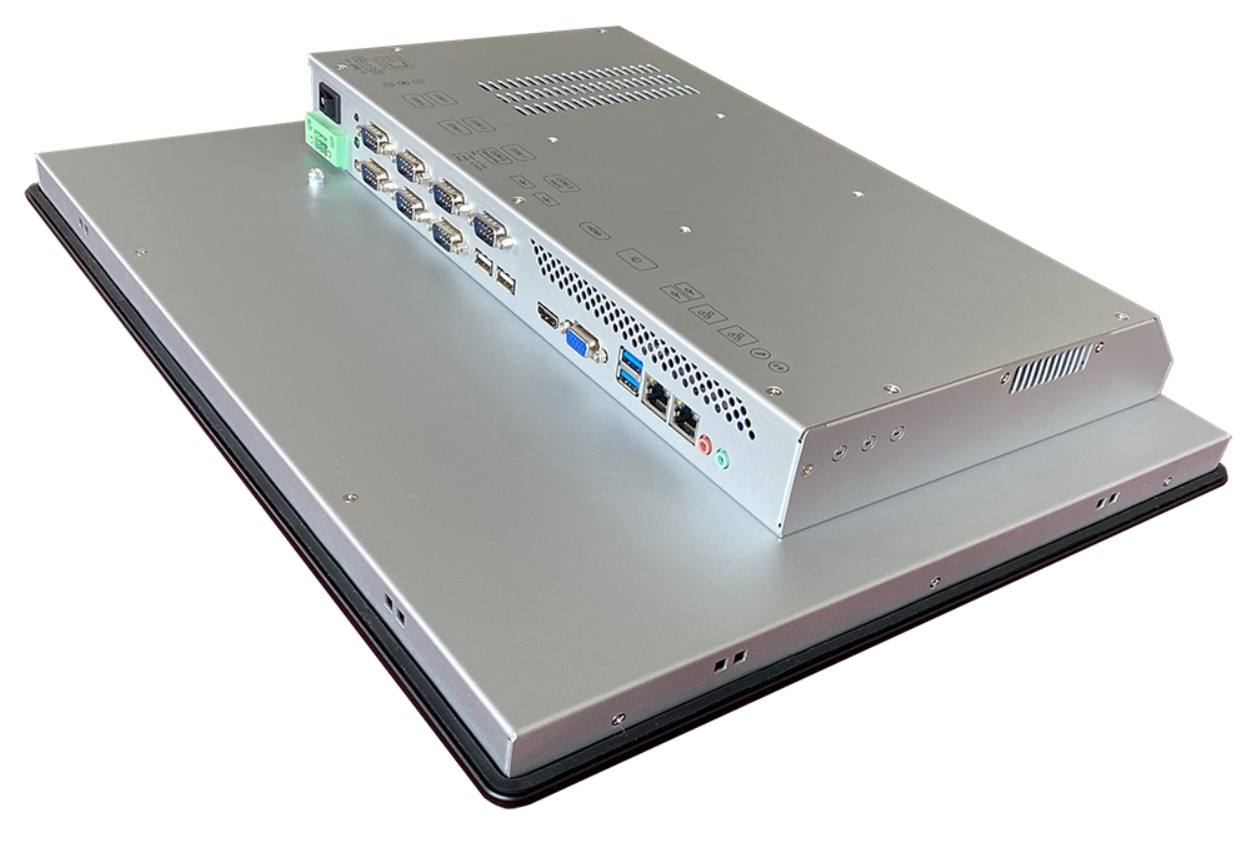

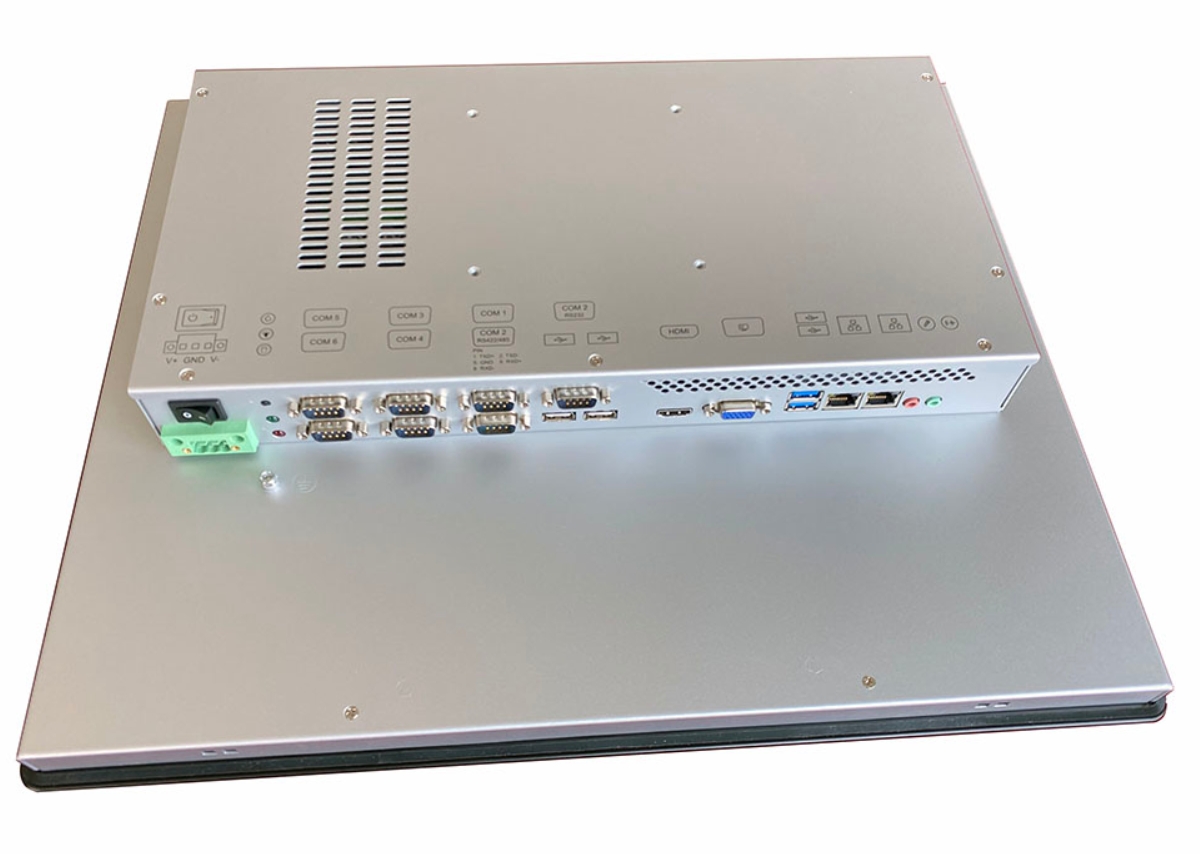

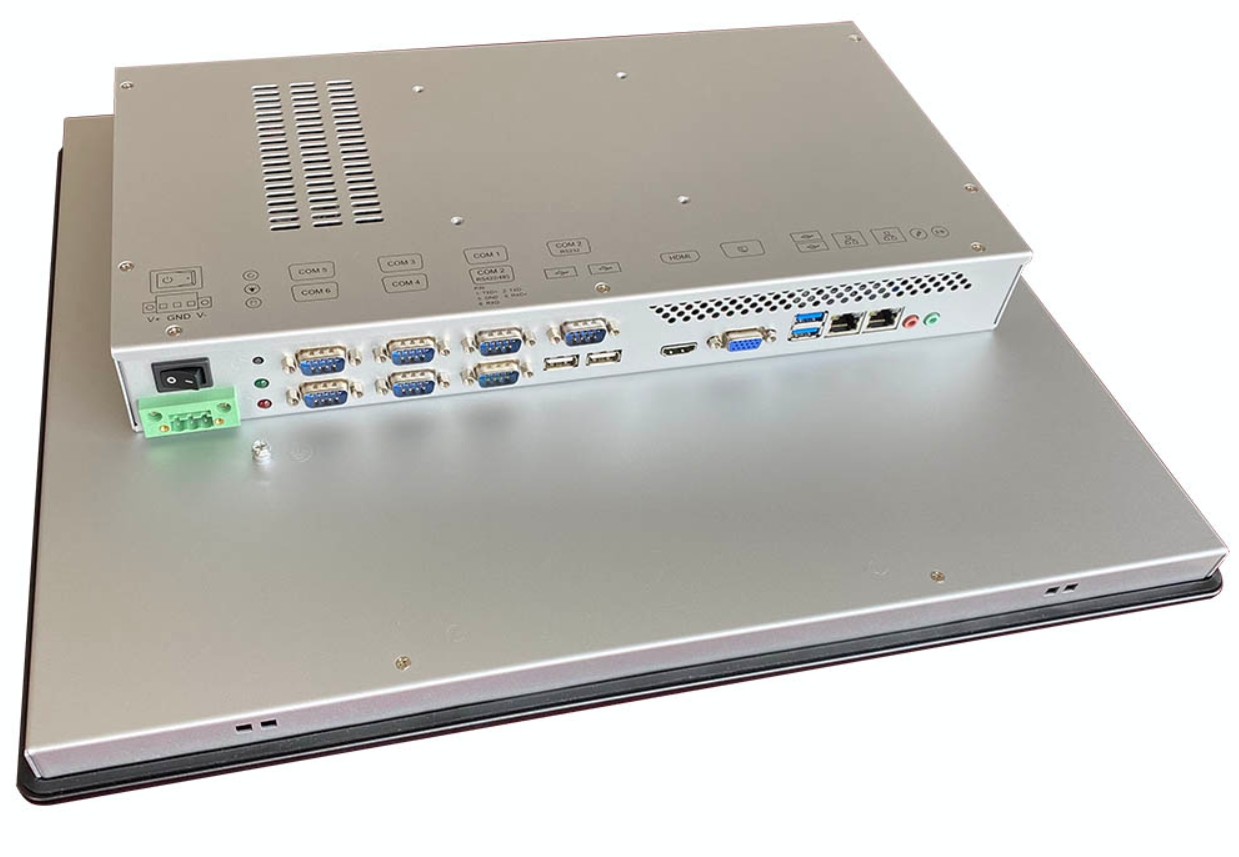

IPC-1501AI is an industrial grade all in one panel pc with 15 inch lcd, 17~22 inch lcd screen is alterlative. It offers various interfaces such as Display Port, HDMI VGA, COM rs232 and rs485, and LAN, integrated. CPU i3,i5,i7 and Hard disk/ RAM are exchangeable and expandable. It is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as petroleum and petrochemical, government supervision, pharmaceutical management, digital hospitals, communications, automation equipment, , and others.

Features

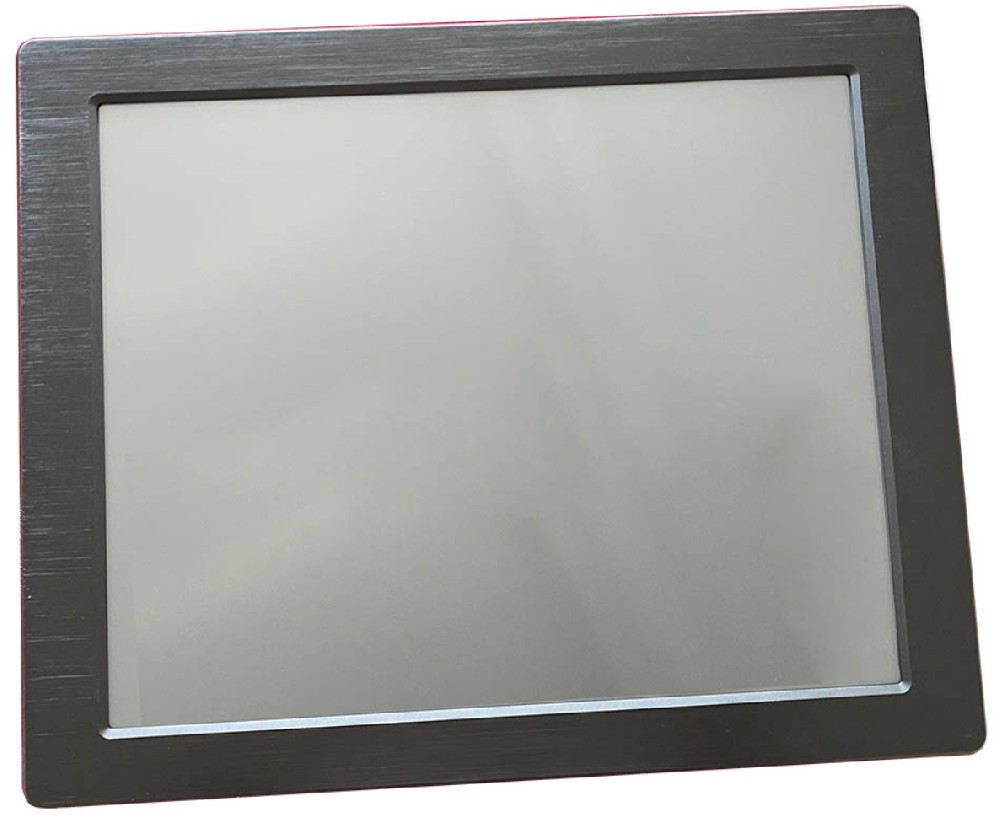

15" TFT 1024 x 768 with resistive touch screen

Aluminum panel with IP65 compliant

Support Intel the Gen. 6/7/8/9th Core i3/i5/i7, Celeron LGA1151 socket CPU

2x DIMM DDR4 2400/2133 SDRAM, MAX support 32GB

1x 2.5" SATA SSD/HDD; 1x M.2 Slot support M.2 2260/2280 PCIE standard SSD

6COM(1x RS485), 1xHDMI, 1xVGA, 4xUSB, 1x GPI0,2xLAN, 1xAUDIO and MIC

1x Mini PCIe slot

100~240V AC Power adapter input D-12V (Optional DC 9-36V input)

Wireless LAN with antenna (optional)

Modularize design for easy installation and maintenance
