Panel PC

System

ProcessorIntel Celeron J1900

ChipsetIntel Bay trail SOC

MemoryDDR3 4G RAM (Max 8G)

Storage2.5" HDD/ SSD ( Size optional)

GraphicIntel HD chipset

Ethernet2 x 100/1000 LAN ports

Video1 x VGA

Audio1x Mic-in and 1x Line-out

USB Port4 x USB 2.0

Serial Port2*COM(1* RS232,1*RS422/RS485)

Parallel ports(LPT)1 x SPP/EPP/ECP port

Keyboard /Mouse2xPS/2

Power switch1 x power switch

Expansive Slot1 x Mini PCIe

Power supplyDC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter

ConstructionFront aluminum bezel(6 mm) and steel chassis

LCD display

Display Type8.4" SVGA TFT LCD(LED backlight)

Resolution800*600

Max.color16.2M

Luminance250 cd/m2

View Angle160°(H) , 140°(V)

Pixel Pitch0.292 x 0.292 mm

Contrast Ratio600:1

Response Time30 ms

LCD MTBF50, 000hrs

Touchscreen

TypeResistive Touchscreen with internal USB interface controller

ResolutionContinuous

Light Transmission80% or more

Surface hardness3H

Operating Force≤100g

Life Expectancy35 Millions

Environmental

Operate temperature-10°C~ 60°C (-14~140°F)

Storage temperature-20°C ~ 70°C (-4 ~ 158°F)

Storage humidity10% to 90% non-condensing

Anti-Vibration17HZ-500 HZ 1G PTP

Anti-Shock1G / peak( 11m sec)

Power supply

Input100~240VAC , 50/60Hz, external ac adapter with lockable connector

OutputDC12V, output 23.5W

Packing info

Dimensions (WxHxD)248.8 x 196.8 x 70mm

WeightNet: 4kg , Gross:5.6 kg

Ordering informations

IPC-08A8.4" industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 2xCOM(1* RS232,1*RS422/RS485), 1x LPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x Audio, MIC, Resistive Touch Screen

IPC-08ALIPC-08A + Mini-PCIEwireless Lan card with antenna

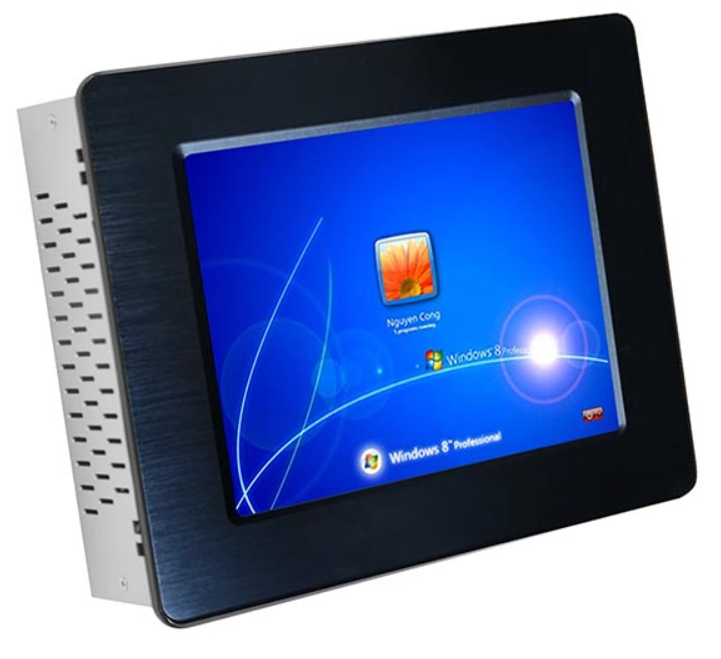

IPC-08A is an 8.4" industrial panel PC, with touch screen or strengthen glass, rich IO 1xS232, 1x RS422/RS485, 1x LPT. Preload 250G SSD and 4G Ram, SDD and ram size is optional. Supports Win7/Win8/ Windows 10 and Linux OS, 6mm thickness aluminum front bezel meets NEMA4/ IP65 level, it is suitable for any harsh industrial environments. With excellent performance, it's always used into industrial equipments, factory automations machines.

Features

• 8.4" SVGA TFT LCD Panel support 800x600 pixels

• 6mm Aluminum front bezel with resistive touch scree

• Intel Celeron J1900 Quad Core 2.0G CPU

• Supports Win7/Win8/Win10, Linux

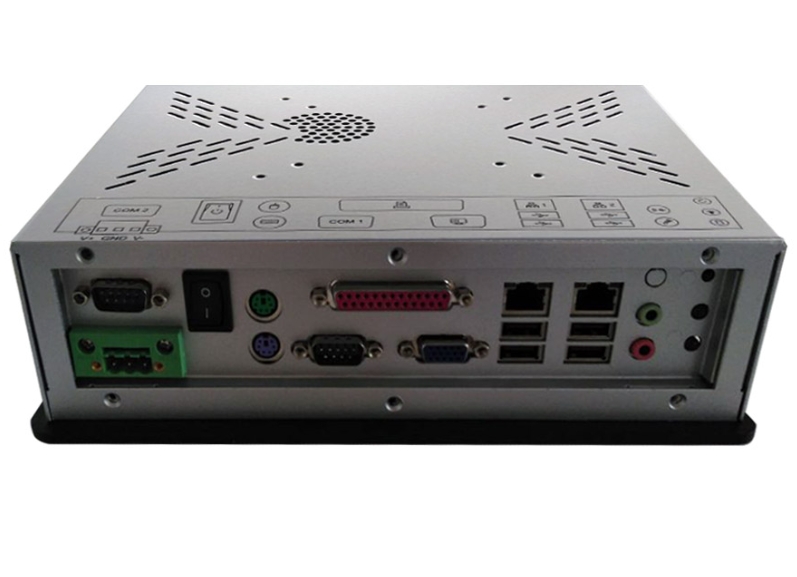

• 2xCOM(1*RS232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC

• 1* Mini PCIe slot for wifi optional

• Standard DC 12V input (Optional Wide range DC 9-36V input)

• Panel (Flush) mount with clips Standard VESA 75/100mm support stand , wall mount and swing arm
