Main System
CPUIntel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB
ChipsetIntel H61 chipset
System Memory1x DIMM DDR3 800/1066/1333 SDRAM up to 8 GB; Preload 4GB RAM
LAN2x Realtek® RL8111x (Gigabit ) 10/100/1000Ethernet
HDD (hard disk )2.5" SATA HDD/ SSD; Preload 250GB SSD
AudioRealtek® ALC662, 5.1 channel surround Audio
I/O Connector5 x RS-232
1 x RS422/485
1x DVI-D port
1x PS/2 (Keboard/mouse)
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
6x USB2.0
1x 3Pin DC power input terminal block
Expansion1xPCI Express x16 Slot, 1 x Mini PCIe slot
General
ConstructionAluminum front bezel and Aluminum chassis
ColorBlack or OEM(>=100 units)
OS SupportWindows 10/8/7, Windows XP, Linux
MountingPanel mount or Standard VESA 75/100mm
Power supplyInput Voltage : 8~30v, with External AC adapter; Output Rating 92W
LCD display
Display type17" SXGA TFT LCD LED Backlight
Resolution1280 x 1024 pixels
Luminance250 cd/m2
Viewing angle170°(H) , 160°(V)
Touchscreen
TypeAnalog Resistive 5-wire
Controller InterfaceInternal USB interface controller
ResolutionContinuous
Light Transmission81% or more
Operating Force≤100g
Life Expectancy35 Million
Environmental
Operate temperature-10°C~ 60°C (-14~140°F)
Storage temperature-20°C ~ 70°C (-4 ~ 158°F)
Storage humidity5% to 95% @40°C non-condensing
Vibration17 to 500HZ 1G PTP
Operating Shock1G /peak ( 11m sec)
Ingress ProtectionFront panel: IP65
Packing info
Dimensions(WxHxD)432 x 346 x 90mm
NET weight9.5 KG
Ordering informations

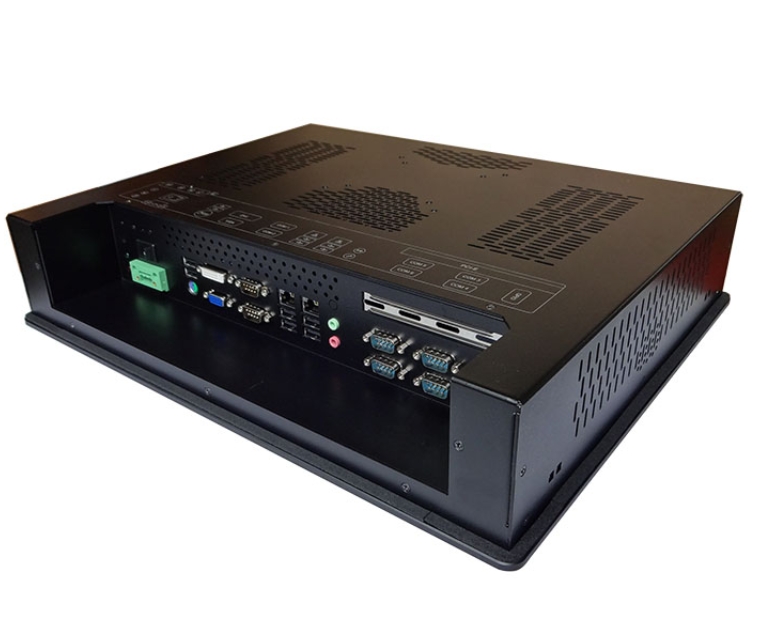

IPC-17i717 inch Industrial Panel PC with Intel i7/i5/i3 Processor, 2.5"SATA SSD/ HDD size optional (Preload 250G SSD), 4G RAM(8G optional), 6*COM(5* RS232.1 * 485), 1*VGA, 1* DVI,6*USB 2.0, 2*LAN, 1* Audio, 1* MIC, 1* PS2
IPC-17i7T17 inch Industrial Panel PC IPC-17i7 with touch screen
CPU DescriptionIntel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
Other LGA1155 socket CPU
